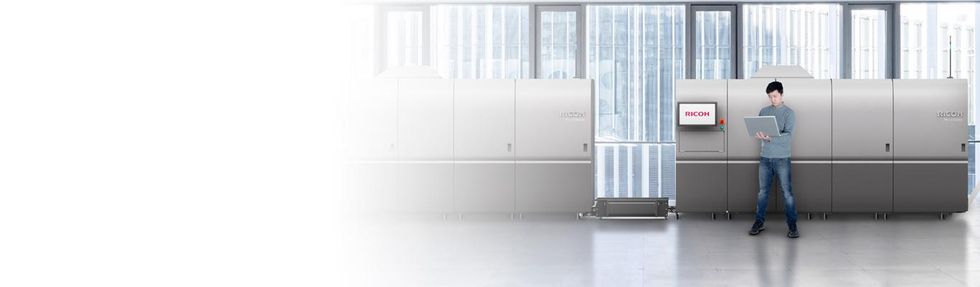

RICOH Pro VC60000 Continuous Feed Inkjet Printer

Pro VC60000

Continuous Feed Inkjet Printer

Explore Next-Gen Continuous Feed Inkjet

  •   Print up to 492 feet per minute
  •   Web width up to 20.47"
  •   Produce up to 1200 x 1200 dpi
  •   Personalize outstanding-quality communications with variable data printing

Add value back into your printing

Your offset presses are great for long-run jobs when every page is the same. But customers may demand a more targeted approach with campaigns and related collateral, which require personalization, customization, versioning and last-minute changes. The RICOH Pro VC60000 combines high-speed printing with the ability to create targeted campaigns, and produce variable data printing (VDP) jobs that aren't possible — or profitable — to run on an offset press.

Help customers send the right message

To increase the value of print materials, customers need fast turnaround times and campaigns that are precisely tailored to their audiences. With the RICOH Pro VC60000's Variable Date Printing (VDP), you can print jobs precisely how and when a customer needs them, and include up-to-date addresses, content and images — all on the fly. Plus, the VC60000 can quickly turnaround complex custom print jobs with professional-looking, near-offset image quality.

Handle multiple data streams at rated speeds

The RICOH Pro VC60000 — with its TotalFlow Print Server R600A controller — can handle PDF, PostScript, JDF and Intelligent Printer Data Stream™(IPDS™) without putting job fidelity at risk. Additionally, the controller keeps pace with printer speeds and produces 1200x1200 dpi at 164 fpm (50 mpm) or 600x600 dpi at 394 fpm (120 mpm). Plus, operators can log into the intuitive interface either onsite or remotely for uninterrupted productivity.

Give each pixel a unique treatment

Drop-on-demand stainless steel printheads dynamically adjust ink quantities for each pixel, so ink is properly placed for the highest quality results while improving accuracy and reducing resources. Additionally, our high-viscosity, quick-drying pigment ink helps prevent smearing, bleeding or blotches. And with two 10-liter containers for each color, your operators can replace ink less often and on the fly, so there's less device downtime.

Turn up the temp and accelerate turnaround

Depending on paper type and ink coverage, drying time can complicate an otherwise well-planned job. Fortunately, the Pro VC60000 features climate controls. To accelerate the drying process you can activate an optional extended dryer to get projects out the door faster.

Want major efficiency gains? Add software.

By itself, the RICOH Pro VC60000 can help you increase revenue with variable data printing. Adding complementary software, however, lets you automate and streamline previously manual processes to accelerate operations, reduce errors and lower costs by even more. Check out our software solutions to capture and manage information, so it's always accessible to the people who need it, when they need it.

Need more information?

Learn more about the RICOH Pro VC60000 Color Continuous Feed Printer and how it may fit your business.


Machine Configuration

2 base units per system
Machine Layout – Duplex "L" or Inline Configuration

Base Unit Dimensions (W x D X H)

WxDxH: 167.40" (4070 mm) x 79.72" (2025 mm) x 78.74" (2000 mm)


*Based on one unit (two units per configuration)

Color Inkjet

CF Color Inkjet

Datastream support

PostScript, PDF (APPE), PDF/VT, IPDS

Digital Front End

TotalFlow R600A


Up to 492 feet per minute (150 meters per minute)


Tight Web

Resolution / Print Speed

600 x 600 dpi : 492 feet/min, or, 150 meters/min
1200 x 600 dpi: 246 feet/min, or, 75 meters/min
1200 x 1200 dpi: 164 feet/min, or, 50 meters/min

Web Width

20.5" (520.7 mm) Printable Area – 20" (508 mm) (non-printed area 2 mm from paper edges)*

Paper Length

4" to 54" (101.6 to 1371.6 mm)


Color Inkjet: 4 colors CMYK, Protector Coat (Optional), Undercoat (Optional)

Imaging Technology

Piezo Drop on Demand
Dynamic Variable Drop Size – @ 2 bits/drop
Stochastic Screening
Ricoh Print Heads – 10 print heads per color

Job submission

FTP, IPP, LPR, Raw Port, Operator Console, Virtual Printer/Hot Folder Support

Supported Software

Ricoh ProcessDirector for AIX, Linux or Windows - Version 3.1 or later releases
TotalFlow BatchBuilder for Windows - Version 1.1
InfoPrint manager for AIX, Linux, Windows - Version 3.1 or later releases
Print Services Facility for AIX, Linux or Windows - Version 3.1 or later releases

Media Types

Plain, General Offset Coated* and Uncoated, IJ coated, IJ treated, GroundWood, Recycled

Color Management

ICC Profile Support, Enhanced Color Management by Side and Object Type, Device Link Support, Spot color dictionaries (Pantone, Toyo, DIC, and HKS), CMR Support (AFP/IPDS)


Up to 1200 x 1200 dpi

Operating System


Recommended Humidity

40 – 60%

Recommended Operating Temperature

64.4 – 75.2° F (18 – 24° C)


8531.9 lbs. (3870 kg)

Processor Architecture

Intel Xeon x64

Paper Weight

40 gsm to 250 gsm
