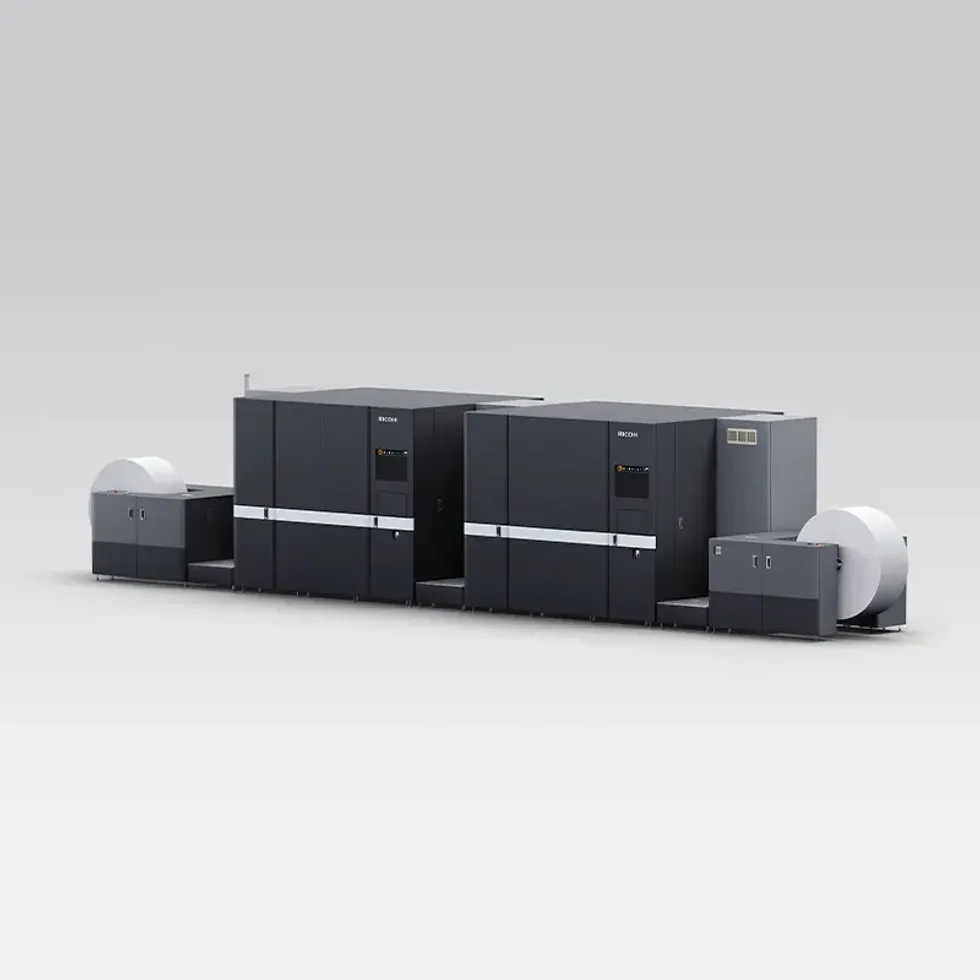

RICOH Pro VC80000

Expand possibility with high-speed digital printing

ID: 418320
  • Print up to 150 metes per minute (mpm)
  • Maximun print resolution of 1200x1200dpi
  • Handles up to 300gsm with uncoated materials
  • Superior automated quality control with a fully integrated Ricoh Pro Scanner. The scanner actively monitors multiple facets of print quality and constantly reviews the performance of each individual head, allowing the PRO VC80000 to automatically maintain a high level of output quality

Features

  • Go further with innovation that creates measurable change

    Go further with innovation that creates measurable change

    Transform your printing landscape with the VC80000, an inkjet digital web press that seamlessly bridges the gap between offset and digital. Its advanced features ensure remarkable image quality and consistent color, facilitating a smooth transition for graphic arts work. Unlock new possibilities for applications like direct mail, brochures, sales collateral, catalogs, and custom publications. Leverage the Pro VC80000's capabilities to achieve greater efficiency in short runs and fast-turn projects, expanding your competitive edge and profitability.

  • Venture farther into the world of digital printing

    Venture farther into the world of digital printing

    Take advantage of the Pro VC80000's unparalleled picture accuracy and color consistency as you transition from offset to digital printing. Explore the possibilities for advanced uses such as direct mail, catalogs, sales materials, brochures, custom publications, and large-scale retail signs. Seize the opportunity to increase output, which will enable you to execute across a range of media.

  • Reliable, high-quality color with Ricoh's extended gamut inks

    Reliable, high-quality color with Ricoh's extended gamut inks

    Open doors to fresh opportunities through extended gamut inks, delivering expanded coverage on lightweight papers for vivid applications. Combined with cutting-edge drying technologies, these inks shine on offset-coated stocks, guaranteeing exceptional quality. Immerse yourself in a flexible, high-quality solution that elevates your creative potential, producing vibrant, precise, and breathtaking prints on a diverse range of materials.

  • Finish in style, within your workplaceDeliver quality prints at faster speeds

    Finish in style, within your workplaceDeliver quality prints at faster speeds

    Crafted to produce graphic communications, the Pro VC80000 stands at the forefront of high-speed inkjet technology. Boasting impressive speeds of up to 492 ft/min (150 mpm) with an enhanced 1200 x 600 dpi resolution, ensuring high-quality, sharp prints. For projects emphasizing image quality, the Pro VC80000 accommodates 1200 x 1200 dpi output at impressive speeds, providing users with the versatility to meet precise project demands.

  • Need more information?

Specifications

  • Imaging Technology
  • Productivity
  • Media Support
  • Inspection and Automation
  • Options
  • Finishing
  • Dimensions and Weight
  • Operating Environment
  • Supplies
  • RICOH TotalFlow® R900A Digital Front End
  • Graphical User Interface
  • Job Management
  • Color Management
  • Software Support
Printing Method
Piezo Drop on Demand inkjet technology
Printheads
Next generation liquid-cooled printheads 11 dual printheads per color
Process
4 colors (CMYK)
Paper Path
Tight Web
Web Width
15.9" to 23"
Non-printing Area
25" from edges
Machine Layout
Duplex inline
1200 × 600 dpi
492 feet per minute (4 colors)
1200 × 1200 dpi
305 feet per minute (4 colors)
Media Types
Offset coated, offset uncoated, inkjet treated
Media Weights
40 gsm to 250 gsm (standard) 40 gsm to 300 gsm (with the Heavy Paper Option)
RICOH Pro Scanner Gen II
Standard (includes inline spectrophotometer and SmartStart feature)
Premium PQ Option
Optional
Automation Suite
Optional
Heavy Paper Option Premium PQ Option Automation Suite Undercoater RICOH Unwinder/Rewinder
Multiple partners provide a variety of unwind, rewind, cut, fold, dynamic perforation, vision systems and inline processing, including a solution for books.
Base Unit Dimensions
Dimensions (W×D×H): 137.8" (3500 mm) × 90.6" (2300 mm) × 100.4" (2550 mm) Weight: 14,330.1 lbs. (6,500 kg)
Unwinder
Dimensions (W×D×H): 51.2" × 65.7" × 43.5" (1,300 × 1,670 × 1,105 mm) Weight: 1,785.7 lbs. (810 kg)
Rewinder
Dimensions (W×D×H): 51.2" × 66.0" × 43.5" (1,300 × 1,677 × 1,105 mm) Weight: 2,270.8 lbs. (1,030 kg)
Undercoater
Dimensions (W×D×H): 72.0" × 37.8" × 86.3" (1,830 × 960 × 2,193 mm) Weight: 1,433.0 lbs. (650 kg)
Temperature: 64° – 75° F (18 – 24° C) Humidity: 40 – 60%
RICOH Pro VC80000 Ink Container Black Type J RICOH Pro VC80000 Ink Container Cyan Type J RICOH Pro VC80000 Ink Container Magenta Type J RICOH Pro VC80000 Ink Container Yellow Type J RICOH Pro VC80000 Ink Container Undercoat Type J Chiller Control Fluid Type V10 Cleaning Fluid Type V1 Waste Fluid Bottle for Undercoat Type V1
Architecture
Processor Architecture: Intel Xeon x64 OS: Linux
Physical Characteristics
Dimensions (W×D×H): 32.5" × 51.0" × 58.3" (826 × 1,295 × 1,480 mm) Weight: 650.4 lbs. (295 kg)
Data Stream Support
PostScript PDF (APPE) PDF/VT IPDS
Job Submission
FTP SFTP IPP LPR Raw Port Operator Console Virtual Printer/Hot Folder Support
Display on each print engine Login by role: Admin, Operator, Service or Customizable Graphical Printer and Supplies Status Operator Messages Paper Catalog/Paper Setup
Graphical Job Ticketing/Job Preview – Native JDF
Banner Operator Comments Sides Printed Copies Rotate, Reduce/Enlarge, Image Alignment Special Marks
Job Imposition
Job Queue Management
Submit Suspend Hold Process Next Delete Job
View Jobs
Job Status Active Inactive Stored All Jobs Job History
ICC Profile Support Enhanced Color Management by Side and Object Type Device Link Support Spot Color Dictionaries (Pantone, Toyo, DIC, and HKS) CMR Support (AFP/IPDS)
RICOH ProcessDirector™ for Linux or Windows Version 3.12 or later releases RICOH Production Analytics RICOH Supervisor™ Print Services Facility for AIX, Linux or Windows Version 3.1 or later releases RICOH TotalFlow™ Producer RICOH Auto Color Adjuster FusionPro®
