Transform and deliver your information with increased agility and more personalization that will fit your budget. With the affordable RICOH Pro C9110 Color Production Printer, you can take on high-speed digital production at speeds of up to 130 pages per minute (ppm), for near-offset quality. Add variable data and a wider range of media options for large or small print runs. Plus, capture new business by switching from your existing offset press or underpowered digital print system.
Give your customers more print options
Attract new customers by offering more options for their information. Print a wide range of oversized signs, banners and point-of-purchase displays. Recreate exceptional images and crisp text on every brochure, handout and postcard. Print on magnets, envelopes and trans-promotional material in vivid color and clarity to bring messages to life — and customers back for more.
Differentiate your work
Use a wider range of media stocks — from 52 to 400 grams per square meter (gsm) — even with duplex printing. Produce two-sided specialty and oversized projects up to 27.5 inches long. Print on specialty media, including super-gloss, metallic, coated, transparent and other synthetics. Get superior transfer on textured media, including vellums and linens, via elastic transfer belt and advanced toner transfer technology.

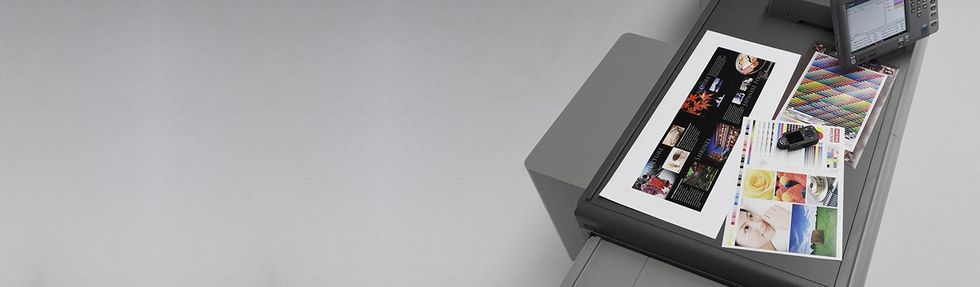

Captivate with compelling color and clarity
Make information jump off the page with best-in-class reproductions up to 1200 x 4800 dpi resolution. Your customers will notice the sharp, precise lines and brilliant colors. Even better, so will their target audience. Maintain precise registration — front-to-back — with Vertical Cavity Surface Emitting Laser (VCSEL) technology. Minimize inconsistencies with the printer's automatic calibration, which delivers reliable color during even the longest jobs. Best of all, reduce guesswork and mistakes, and specify up to 250 spot colors, set up proofing touch points, define delivery styles and more.

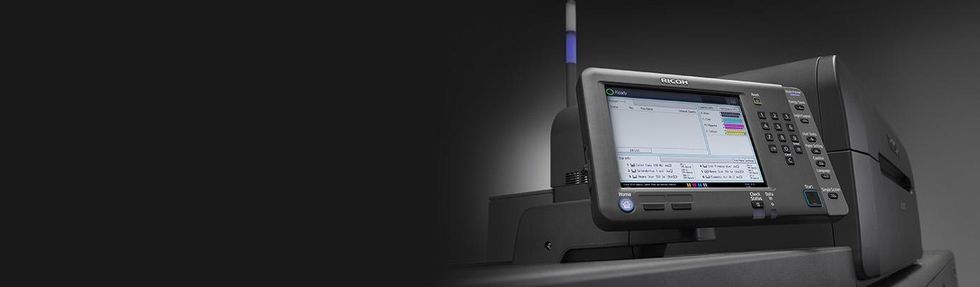

Take control with colorful firepower
Our print controllers give you the power and precision to expedite even your largest, most complex jobs. Add the Fiery® Pro 80 or QX Color Controllers and simplify high-volume printing for end-to-end automated workflows. Use EFI's Fiery Server technology to RIP one job while processing another, and preset your settings, configurations and even frequently run jobs for faster, more reliable print runs. The EFI Fiery® FreeForm and PPML manage variable data and produce highly personalized print campaigns. Plus, record the print job accounting information with the new job tracker feature and stay you on task and on budget.

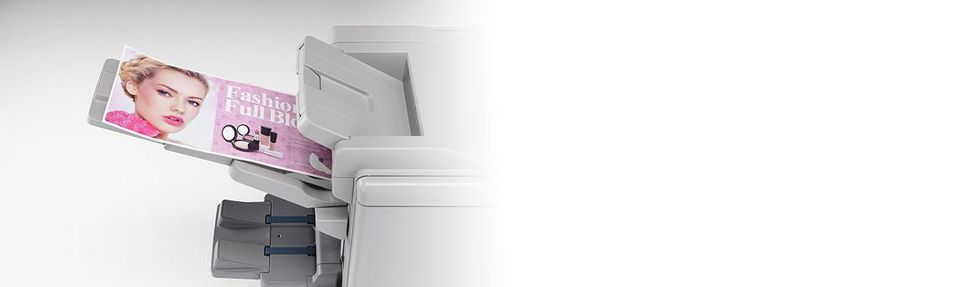

Add the finishing touch
Finish what you started in impeccable style with productive finishing solutions. Create books at sizes up to 11" x 17" with minimal effort using the booklet maker, folder and trimmers. Fold media in multiple styles to give customers more options. Plus, collate, bind, punch, trim and add or close rings with minimal manual intervention.

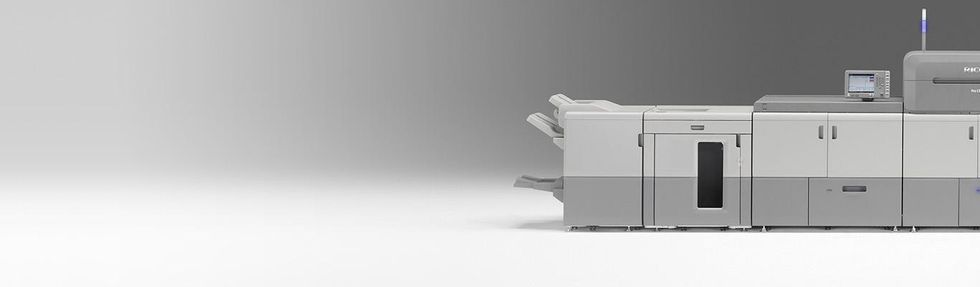

Look to predictable precision
Simplify print production with an automated digital print system that reduces manual touch points. Take advantage of up to 8 vacuum-fed paper drawers to dispatch media with incredible precision. Preset or customize settings in the extensive paper library for up to 1,000 profiles, and use the Media Identification Unit to greatly reduce your production prep work time.
Meet your deadlines
Drive new business by driving your volume up to one million pages per month. Simply follow the animated guides on the control panel to access key settings. Print your thickest stocks without compromising speed or quality. With vacuum-fed, air-assisted feeding from every drawer and a straight path belt cooling system, you can minimize jams, double feeds, overheating and delays. Plus, you can store up to 18,150 sheets of paper and change consumables on the fly to complete jobs faster and with fewer interruptions.
Achieve autonomy plus partner with experts
You can perform most tasks yourself, including managing colors, replacing toners or setting up unique workflows. When you do need service, our team of print experts is available 24/7/365 to get you back on track. As part of our G7 Master Print Qualification, we can help you verify accurate color across almost any substrate. We can also teach your staff what to look for when gauging colors during production runs and offer insights to improve your workflows.
Need more information?
Learn more about the RICOH Pro C9110 Color Production Printer and how it may fit your business.
Download and install the manuals and associated software for your device.
Additional Paper Sources & Options
Bridge Unit BU5010
Bridge unit used to connect up to 3 Vacuum Feed LCITs RT5100. One unit goes between each RT5100.
W x D x H (inches): 13 x 28.7 x 39.3
W x D x H (mm): 330 x 729 x 998
Notes:
1. If two Vacuum Feed LCIT RT5100 are added, then this option will need to be added.
2. If three Vacuum Feed LCIT RT5100 are added, then two of this option must be added.
Multi Bypass Attachment Kit for Vacuum Feed LCIT Type S3
Needed to configure the Multi Bypass Tray BY5010 with the Vacuum Feed LCIT RT5100.
Multi Bypass Oversize Sheet Tray Type S3
Plastic extender for BY5010 to accommodate oversize prints.
W x D x H (inches): 43 x 22 x 8.27
W x D x H (mm): 1,092 x 559 x 210
Notes:
This option can only be installed if Multi Bypass Tray BY5010 is added.
Tab Sheet Holder Type 3260
Allows users to set up and print on tabs to separate chapters within the document, eliminating the manual collation of document sets.
Can be used in either Tray 2 or Tray 3 from the standard paper trays, but not both.
Controller Options
EFI DIMM 4GB
Ram upgrade for Fiery E-43.
Notes:
This option can only be installed if Color Controller E-43 is added.
EFI Graphic Arts Package Premium Edition
Software upgrade for Fiery E-43 only.
Notes:
This option can only be installed if Color Controller E-43 is added.
EFI Server HDD Security Type E-83A
Removable HD for Fiery E-83.
Notes:
This option can only be installed if Color Controller E-83 is added.
FACI Furniture - E-41/E42
Stand, keyboard, monitor, and mouse for Fiery E-44B.
Notes:
This option can only be installed if Color Controller E-44B is added.
FACI Furniture Bundle Type E-83A
Stand, keyboard, monitor and mouse for Fiery E-83.
Notes:
This option can only be added if Color Controller E-83 is added.
Fiery Color Controller E-43
Fiery E-43 FS150 Pro 80 controller for Pro C9100 Series.
Minimizes repetitive tasks and touch points with workflow automation tools.
Delivers consistent output quality and precise color matches with Fiery ColorWise® technology and Fiery Spot-Onâ.
Makes elements pop out with the optional specialty color in White or Clear Toner.
Prints intricate text details and ultra-thin lines with the standard Dynamic HD Text and Graphics feature.
Easily perform elaborate document preparation with optional advanced make-ready tools and much more.
Notes:
This item cannot be installed with the Color Controller E-83, EFI Server HDD Security Type E-83A or FACI Furniture Bundle Type E-83A.
Fiery Color Controller E-83
Fiery E-83 FS150 QX controller for Pro C9100 Series.
Processes large and complex files up to 55% faster with Fiery HyperRIP to maximize your return on investment.
Ensures consistent and accurate color with the advanced color management tools.
Prints crisp hair-thin lines and fine details in text with the standard Dynamic HD Text and Graphics feature.
Increases impact with personalization and complex setup using the leading Fiery VDP technology and powerful make-ready capabilities and much more.
Notes:
This item cannot be installed with the Color Controller E-43, EFI Graphic Arts Package Premium Edition, EFI DIMM 4GB, EFI Server HDD Security Type E-43A, FACI Furniture Bundle Type E-43A, TF Color Standard Type FS150 or TF Color Advanced Type FS150.
HDD Security
Removable Hard Disk for Fiery E-44B.
Notes:
This option can only be installed if Color Controller E-44B is added.
TF Color Advanced Type FS150
Software upgrade bundle for Fiery E-83 includes GAPE, CPS4.X, ES-2000 Spectrophotometer, Impose FS150, Compose FS150.
Notes:
This option can only be installed if Color Controller E-83 is added.
TF Color Standard Type FS150
Software upgrade bundle for Fiery E-43 includes ES-2000 Spectrophotometer and Impose FS150.
Notes:
This option can only be installed if Color Controller E-43 is added.
Fiery Options
EFI Compose Digital
Provides intuitive tools that make advanced document preparation simple and quick.
Notes:
Color Controller E-23C is required to add this option.
EFI CPS V5.X ES-3000 1 year Digital
Contains Color Profiler software and ES-3000 spectrophotometer: Includes 1 year of phone support.
Notes:
Color Controller E-23C is required to add this option.
EFI ES-3000
Color measurement device for calibration and profiling. Enables fast, precise, and flexible color management that produces the highest color quality.
Notes:
Color Controller E-23C is required to add this option.
EFI Impose Digital
Helps to automate and streamline labor-intensive prepress tasks.
Notes:
Color Controller E-23C is required to add this option.
Fiery CPS V4.0 Software only
For customers that have an ES-2000 Spectrophotometer and want Color Profiler V4 software: Includes 1 year of phone support.
Finishing Options
Die Set 3-5-7 Hole
This die set accommodates a 3 Hole, 5 Hole and 7 Hole Ring Bind.
Notes:
1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
2. For use in the GBC StreamPunch Ultra MP only.
Die Set C4 Coil Oval 43-47H
This die set accommodates a 43 Hole or 47 Hole Bind.
Notes:
1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
2. For use in the GBC StreamPunch Ultra MP only.
Die Set C4 Round 43-47H .2475 Color Coil
This die set accommodates 43 Hole or 47 Hole Coil Bind.
Notes:
1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
2. For use in the GBC StreamPunch Ultra MP only.
GBC Die Set 21H-23H Wirebind
This die set accommodates a 21 or 23 Hole Twin Loop Wire 2:1 Bind.
Notes:
1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
2. For use in the GBC StreamPunch Ultra MP only.
GBC Die Set 3 Hole
This die set accommodates a 3 Hole Ring Bind.
Notes:
1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
2. For use in the GBC StreamPunch Ultra MP only.
GBC Die Set CombBind 19-20-21 Hole
This die set accommodates a 19, 20, or 21 Hole Cerlox Bind.
Notes:
1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
2. For use in the GBC StreamPunch Ultra MP only.
GBC Die Set VB LTR
This die set accommodates a 11 Hole Velobind Bind.
Notes:
1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
2. For use in the GBC StreamPunch Ultra MP only.
GBC Die Set W3 Square 32-34H Wirebind
This die set accommodates a 32 or 34 Hole Twin Loop Wire 3:1 Bind.
Notes:
1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
2. For use in the GBC StreamPunch Ultra MP only.
High Capacity Belt Stacker BST4000-1
The High Capacity Belt Stacker is a practical option for more production-oriented sites. It allows long unattended runs and stacks up to 1,000 8.5" x 11"/A4 booklets of 4 pages.
The stacker can be configured straight after the Plockmatic 350-m or in a 90-degree angle, which attaches after the standard output tray.
The stacker requires its own power outlet.
W x D x H (inches): 70.3 x 17.7 x 41.7
W x D x H (mm): 1,786 x 450 x 1,059
Notes:
Plockmatic 350-m required.
PBM Rotate Crease Trimmer
The Plockmatic RCT Rotate Crease Trimmer provides professional looking, full bleed trimmed and creased booklets on the PBM350-m.
The unit does not support offline work.
The Plockmatic PBM Trim Module is needed to complete full bleed trim.
Weight: 485 lbs. (220 kg)
W x D x H (inches): 14.2 x 24.4 x 35.4
W x D x H (mm): 361 x 620 x 899
Notes:
1. This option can only be installed if Plockmatic PBM350-m is added.
2. PBM-m RCT Cover Kit is required.
PBM-m Cover Feeder
Cover inserter used to feed covers into the Plockmatic finishing workflow.
Weight: 22 lbs. (10 kg)
W x D x H (inches): 12.2 x 20.9 x 7.5
W x D x H (mm): 310 x 531 x 191
Notes:
Plockmatic 350-m required.
Plockmatic Rail Unit
Helps dock/undock the Plockmatic 350-m from the SR4110 Finisher.
Cover inserter used to feed covers.
Notes:
Plockmatic 350-m required.
Punch Unit PU5020 NA
Optional hole punching unit for Finisher SR5070 and Booklet Finisher SR5080.
Notes:
1. One of the following finishers is required to add this option: Finisher SR5070 or Booklet Finisher SR5080.
2. This option cannot be installed with Finisher SR4120 or Booklet Finisher SR4130.
Maintenance Options
TCRU A Type C9100
TCRU A contains customer replaceable parts for IQ and reliability and is mandatory for all mainframes.
Includes: Drum Cleaning Unit, Charger Roller Unit, Belt Cleaning Unit, Pre-Transfer Belt Unit, Paper Feed Rollers, Fusing Cleaning Unit and Smoothing Rollers.
TCRU B Type C9100
TCRU B contains two Fuser Cleaning units and is mandatory for all mainframes.
Includes: Two Fuser Cleaning Units.
TCRU C Type C9100
TCRU C contains an entire fusing unit and is mandatory for all mainframes.
Includes: Fuser Unit.
Paper Handling & Finishing Options
Buffer Pass Unit Type S3
Recommended for printing on coated stocks, or with high toner coverage to avoid bricking of paper.
Cover Interposer Tray for Perfect Binder Type S1
Allows users to add covers to Perfect Bind books. Covers can be created on a different system and added to the completed book.
Notes:
This option can only be installed if Perfect Binder GB5010 is added.
Die Set 32 Hole (Auto Wire and Pro Click)
This die set accommodates 32 Hole Square for Auto Wire and Pro Click Bind.
Notes:
1. For use in the GBC StreamPunch Ultra only.
Plockmatic PBM Book Fold Module
The Book Fold module adds the finishing touch with a square folded edge and printable spine. Gives booklets the professional look of a perfect bound book.
W x D x H (inches): 14.2 x 24.4 x 35.4
W x D x H (mm): 361 x 620 x 899
Notes:
1. This option can only be installed if either Plockmatic PBM350 or Plockmatic PBM500 is added.
2. Plockmatic PBM Trim Module is required to add this option.
Plockmatic PBM Trim Module
Plockmatic PBM Trim Module for face trim of booklets only.
W x D x H (inches): 14.2 x 24.4 x 35.4
W x D x H (mm): 361 x 620 x 899
Notes:
1. This option can only be installed if either Plockmatic PBM350 or Plockmatic PBM500 is added.
2. Plockmatic PBM Book Fold Module is required to add this option.
Plockmatic PBM500 Upgrade Kit
For a field upgrade from a PBM350 to a PBM500.
Notes:
This option can only be installed if Plockmatic PBM350 is added.
Roll-Away Cart Type 5010
Holds up to 5,000 sheets for the SK5030 stacker, making it easy to transport output.
Notes:
This option can only be installed if High Capacity Stacker SK5030 is added.
Transit Pass Unit for Perfect Binder Type S1
This option mates the engine to the Perfect Binder GB5010.
Notes:
This option can only be installed if Perfect Binder GB5010 is added.
Security & Miscellaneous Accessories
Optional Counter I/F Type A
Optional 20-Pin Interface used to attach external key counter or key card device.
All accessories listed may not be available in Latin America. Talk to you dealer or distributor about it. Images are for illustrative purposes only and may not represent accessories fully.
