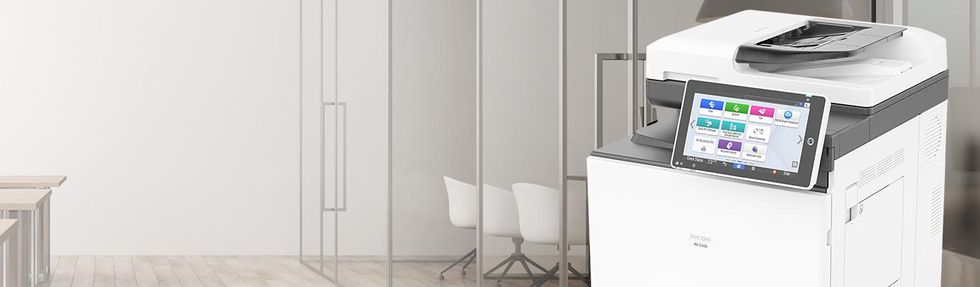

IM C400F Color Laser Multifunction Printer

Specifications

Resolution

1200 x 1200 dpi

Dimensions W x D x H

19.6" x 22.1" x 23.2" (498 x 561 x 590 mm)

Weight

110.2 lbs. (50 kg)

EPEAT status

Gold

Power Consumption

Less than 1,400 W; Sleep Mode: 0.65W

Supported Paper Weights

Trays: 60 - 163 g/m2
Bypass: 60 - 220 g/m2
Duplex: 60 - 163 g/m2

Power Source

120V - 127V, 60Hz

Energy Star

Certified

Color / Black & White

Color

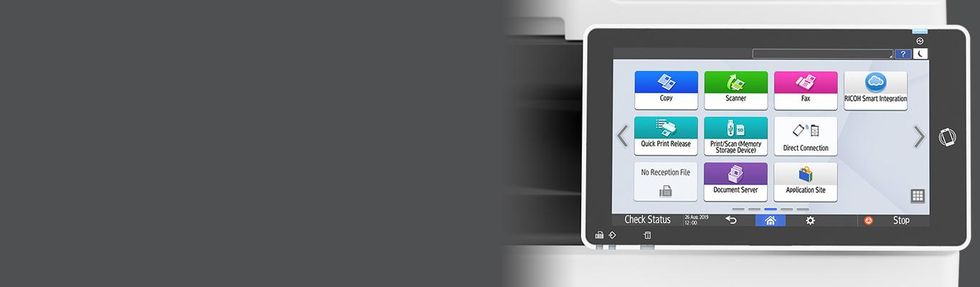

Control Panel

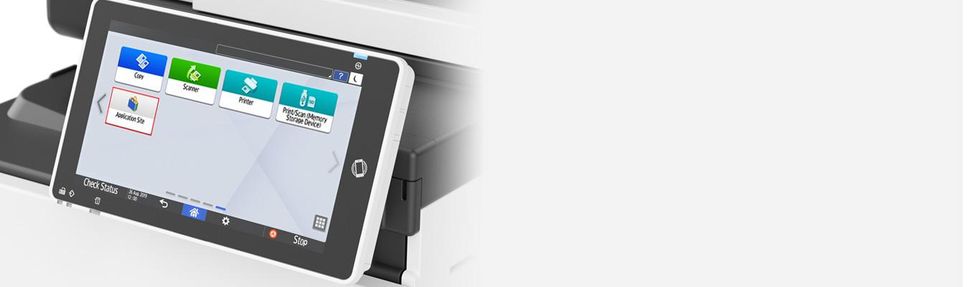

10.1" Smart Operation Panel

Maximum Copy Quantity

Up to 999 copies

Typical Electricity Consumption (TEC)

0.54 kWh/week
TEC value is measured based on the ENERGY STAR Ver.3.0 test method.

Standard Output Capacity

100 sheets

Configuration

Desktop

Supported Paper Sizes

Letter, Legal, HLT, A4, A5, B5

System Memory

2 GB RAM/ 320 GB HDD

First Page Out Time

Color: 7.4 seconds. Black and White: 6.2 seconds

Supported Paper Types

Plain, Recycled, Special, Color, Letterhead, Cardstock, Preprinted, Bond, Coated, Envelope, Label, OHP

Output Speed Copy/Print

45 ppm B/W. 42 ppm color

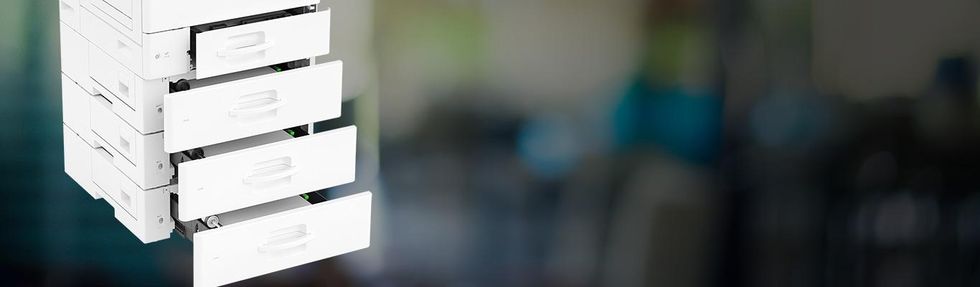

Maximum Paper Capacity

2,300 sheets

Single Pass Document Feeder (SPDF)

50 sheets

Standard Paper Capacity

550 sheets + 100-Sheet Bypass Tray

Document Feeder Type

Single Pass Document Feeder (SPDF)

Zoom Range

25% to 400% in 1% increments

Interfaces

Standard: Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Host I/F Type B. Optional: Wireless LAN (IEEE 802.11a/b/g/n)

Hard Disk Drive

320GB HDD

Printer Languages

Standard: PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation). Optional: Genuine Adobe® PostScript® 3™, PDF Direct from Adobe®

Network Protocol

TCP/IP (IPv4, IPv6)

Mobile Printing Support

Apple AirPrint™, Mopria, NFC, RICOH Smart Device Connector

Print Resolution

1200 x 1200 dpi

Scan Modes

E-mail, Folder, USB, SD Card, URL, FTP

Scan Speed BW Full Color

Full Color and B&W: 41 ipm (simplex) / 82 ipm (duplex) @ 200/300 dpi, Letter size

File Formats

Single page: TIFF, JPEG, PDF, High compression PDF, PDF/A. Multi page: TIFF, PDF, High compression PDF, PDF/A

Scanning Resolution

600 dpi (1200 dpi via TWAIN)

Type

ITU-T (CCITT) G3

Compression Method

MH, MR, MMR, JBIG

Circuit

PSTN, PBX

Scanning Speed

40 spm (simplex) / 80 spm (duplex)

Transmission Speed

2 seconds

Modem Speed

33.6 Kbps

Fax Resolution

8 x 3.85 line/mm, 200 x 100 dpi, 8 x 7.7 line/mm, 200 x 200 dpi
